Monorail Type Shot Blasting Machines

We are manufacturer, supplier of Monorail type shot blasting Machines. Our Setup Situated in Aurangabad, Maharashtra, India.

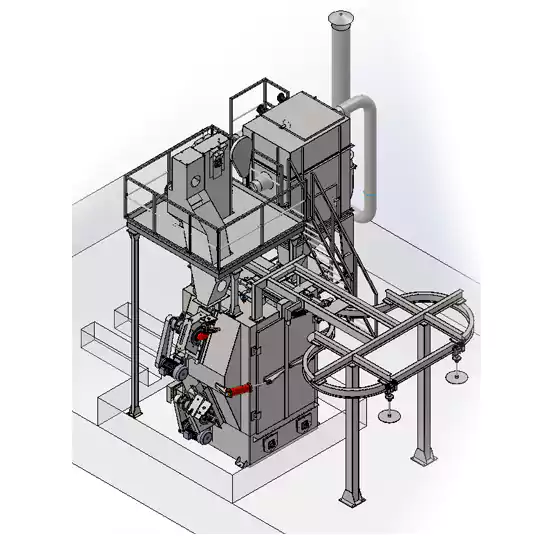

Monorail loop type Shot Blasting Machine

Monorail Loop Type Shot Blasting Machine

Monorail Loop Type Shot Blasting Machine

Get A Quote

Model	SP 450
Hanger Size	Dia. 900 x 1200
Capacity	750 Kg

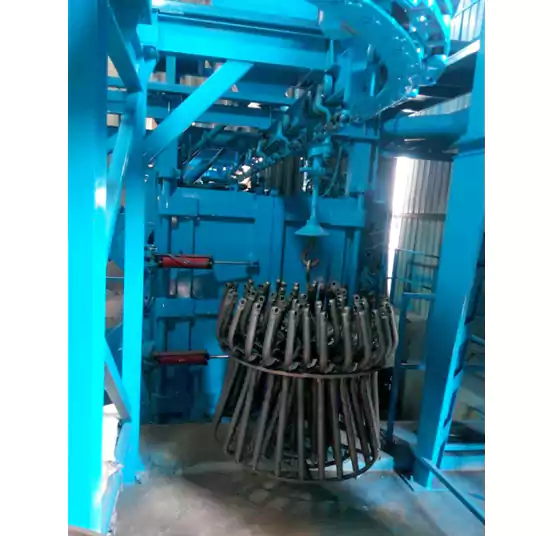

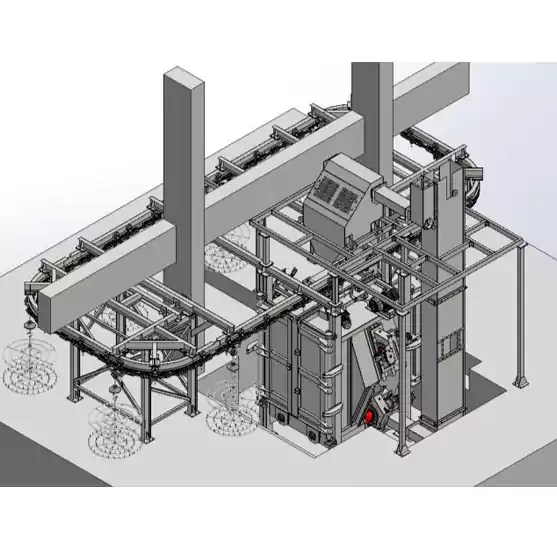

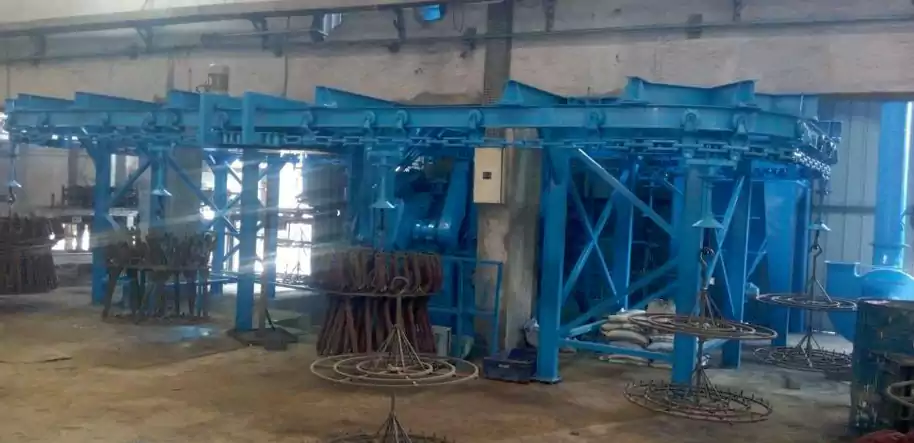

Monorail type Shot Blasting Machine

Monorail type Shot Blasting Machine

Monorail type Shot Blasting Machine

Monorail type Shot Blasting Machine

Get A Quote

Model	MONO 4T 10
Hanger Size	Dia. 1000 x 1500
Capacity	1500 Kg.

Monorail can also be provided for handling of hangers depending upon the load of castings. The system can also be automated for handling of hangers.

Any additional modification can be accommodated as per requirements.

Technical Data

MODEL	SP 350	SP 450
HANGER SIZE	600 X 1300 H	750 X 1500 H
LOADING CAPACITY	750 KGS	1000 KGS
NO OF TURBINES	2	3
TURBINE SIZE	300 D X 63	380 D X 63
TURBINE DRIVE	10 HP	10 HP
TOTAL HP	28 HP	38 HP
DUST COLLECTOR	1300 CFM	1700 CFM

Plant Dimensions In MM

H	1100	1500
W	1100	1400
H	2700	3000
H1	4800	5350
P	500	500
X	250	250
